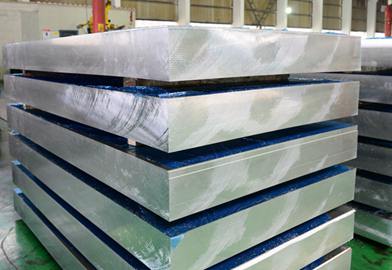

High-Quality 6063 Aluminum Sheet/Plate - The Ultimate Architectural Solution
Product Description
6063 aluminum sheet is a medium-strength alloy, often referred to as "Architectural Aluminum." It is primarily alloyed with magnesium and silicon. Known for its incredibly smooth surface finish, it is the preferred choice for applications requiring anodizing or a high-quality aesthetic appearance.
Our 6063 aluminum plates offer excellent extrudability, superior corrosion resistance, and high thermal conductivity. Whether you are working on intricate architectural frameworks or high-end consumer electronics, our 6063-T5/T6 sheets provide the perfect balance of form and function.
Technical Specifications (Parameters)
| Properties |
Data / Details |
| Alloy Series |
6000 Series (Al-Mg-Si) |
| Typical Temper |
T5, T6, T651, O |
| Thickness Range |
0.5mm - 200mm (Customizable) |
| Width Range |
500mm - 2500mm |
| Surface Treatment |
Mill Finish, Anodized, Brushed, Polished, Powder Coated |
| Standard |
ASTM B209, EN 485, GB/T 3880 |
| Tensile Strength |
≥ 130 MPa (T5), ≥ 205 MPa (T6) |
| Yield Strength |
≥ 90 MPa (T5), ≥ 170 MPa (T6) |
Key Advantages
- Superior Surface Finish: Highly responsive to anodizing and powder coating, ensuring a premium look.
- Excellent Corrosion Resistance: Highly resistant to atmospheric corrosion, making it suitable for outdoor use.
- Great Workability: Easy to extrude, weld (TIG/MIG), and machine.
- Good Thermal Conductivity: Effective for heat dissipation applications.
- Highly Sustainable: 100% recyclable without losing its physical properties.
Potential Drawbacks
- Lower Strength: Not as strong as 6061 aluminum sheet for heavy-duty structural loads.
- Softness: Can be prone to scratching if handled without protective film during fabrication.

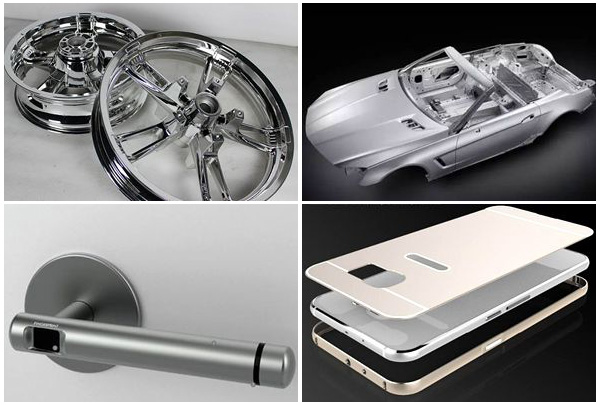

Common Applications
6063 aluminum sheet is widely used across various industries due to its versatility:
- Architecture: Window frames, door frames, roofing, and decorative facades.
- Electrical & Electronics: Heat sinks, chassis for high-end audio equipment, and mobile phone shells.
- Automotive: Interior trim and decorative components.
- Furniture: Modern office furniture, frames, and kitchen hardware.
- Signage: High-quality outdoor billboards and nameplates.

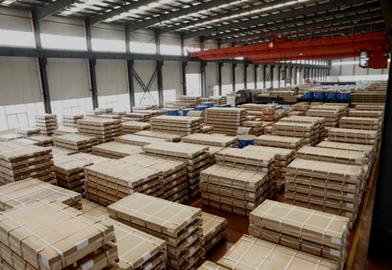

Packaging & Delivery
We ensure that every 6063 aluminum plate reaches you in perfect condition:
- Surface Protection: Single or double-side PE protective film or paper interleaving.
- Outer Packing: Standard export seaworthy wooden pallets.
- Securing: Galvanized steel belts or heavy-duty plastic strapping to prevent movement during transit.
- Customization: Moisture-proof desiccant and reinforced corner protection available upon request.
Frequently Asked Questions (FAQ)
Q1: What is the difference between 6061 and 6063 aluminum sheets?
A: While both belong to the 6000 series, 6061 is stronger and better for structural parts. 6063 has a much smoother surface finish and is superior for anodizing and architectural aesthetics.
Q2: Can 6063 aluminum be welded?
A: Yes, 6063 has excellent weldability using standard methods like TIG or MIG welding.
Q3: Which temper should I choose, T5 or T6?
A: T6 is solution heat-treated and artificially aged for higher strength. T5 is cooled from an elevated temperature shaping process and then artificially aged, offering slightly lower strength but better dimensional stability for complex shapes.
Q4: Do you offer custom cutting services?
A: Yes, we provide precision Waterjet or Laser Cutting to meet your exact project dimensions.
